Water Analyzer

*Dissolved Oxygen Meter

*Measuring range: 0-20 ppm

*Accuracy: 0.1 ppm

*No membranes to replace

*No electrolyte solution to replenish

*No anode or cathode to clean or replace

*Full scale response time less than 30 seconds

*No poisoning from H2S, heavy metals, and other chemicals

*Three-year warranty on the probe

**Application:

1.Aeration Tank

2.Nitrification & Denitrification tank

3.Anaerobic Digesters

4.Aerobic Digesters

5.Plant effluent / outfall　

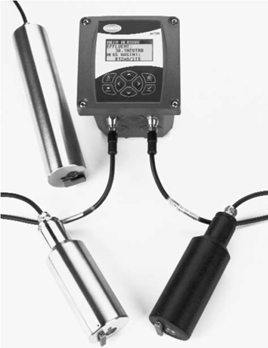

*Suspended Solid Meter

**Measuring range: 0.001 to 50 g/L

*Accuracy: less than 5%

*Color-independent – no need to continually calibrated to compensate for color variation

*Self-cleaning wiper prevents measurement error due to fouling

*Demonstrate excellent correlation with laboratory analysis

*Easy one-point calibration

*Application:

1.Influent suspended solids

2.Final effluent

3.Aeration Tank

4.Sedimentation Tank

5.Return activated sludge

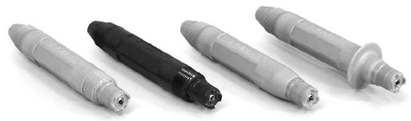

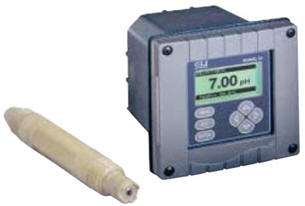

*pH / ORPMeter

*Measuring range:

*pH: 0-14 pH

*ORP: -1,500 to + 1,500 mV

*Greater reliability, less downtime and maintenance

*Built-in encapsulated preamp produces a strong signal

*Sensor can locate up to 3000 feet from the analyzer

*Replaceable salt bridge & protector

*Extend the working life of the sensor

*Various materials and mounting styles available for any application

*Application:

1.Aeration Tank

2.Odor scrubbers

3.Final effluent

*Chlorine Analyzer

*range: 0 to 5 mg/L free or total residual chlorine

*Fast, Reliable and Economical

*By Colorimetric DPD chemistry

*Automatic color/turbidity compensation

*Minimal reagent consumption

*Ultra-low maintenance

*30-days unattended operation

*Application:

1.Disinfection Chamber

2.Final effluent

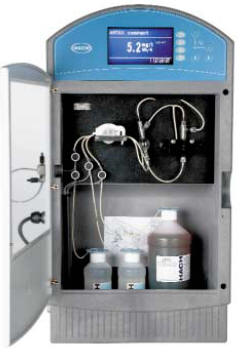

*Ammonia Analyzer

*Range: 0.5 up to 1200 mg/L NH4-N

*Accuracy: 2.5% or 0.2 mg/L

*Innovative liquid to gas-phase transfer methodology

*Convenient, accurate, proven colorimetric technology

*Less maintenance than electrode systems

*Compact and efficient

*Economical and easy to use

*Automatic, reliable operation—Operating unattended for up to 30 days

*Automatic self-cleaning and calibration

*Application:

1.Nitrification & Denitrification tank

2.Aeration Tank

3.Influent & Effluent

*Nitrate Analyzer

*Range: 0.1 up to 100 mg/L NO2+3-N

*Accuracy: 3% or 0.5 mg/L

*Response time: less than 1 minute

*Advanced ultraviolet (UV) absorption technology

*Unprecedented simplicity, accuracy, and economy

*eliminate the need for reagents, sample conditioning, and frequent calibrations

*Self-Cleaning Sensor

*little maintenance and offers remarkably low cost of operation　

*Application:

1.Nitrification & Denitrification tank

2.Aeration Tank

3.Influent & Effluent

*Sludge Blanket Level Meter

*Range: 0 to 10m

*Accuracy: 0.25%

*Continuous single or dual channel level control choice

*High frequency gives high reliability long term

*Self cleaning transducer removes need for regular inspection

*Easy set up, via drop down menu on large clear display

*Keeps algae and other growth off the face

*Flexible transducer arm option, allows rotating bridges to be used

*Mounting bracket options available

*Relay choices for alarm or pump control function

*Reliable monitoring down to 0.5% density

*Second transducer may be interface Viper transducer or an air transducer for liquids or solids level measurement

*200m separation distance between Viper and controller using standard cable

*Application:

1.SBR tank

2.Primary settlement tank

3.Secondary settlement tank

*Wastewater sampler

*Custom designed air-sensing thermostat

*High-efficiency compressor/condenser assembly

*Rigid foam insulation to maintain an optimum temperature 4°C

*Easy to read display even in bright and dimly lit Environments

*Simple programming and set up (less than 2 minutes for sampler routine) for fewer programming errors

*Extended pump tubing life (20,000 cycles) reduces annual maintenance costs and pump down time

*See-through pump cover allows quick and convenient visual inspection and troubleshooting

*Desiccant tube changes as easily as a standard light bulb　

*Application:

1.Settlement tank

2.Aeration Tank
