Level measurement

*Hydrostatic Level meter

*Designed for complete submersibility

*Unique cable seal system ensures water tight integrity

*Range: 0-100m

*Accuracy: 0.3% FS

*Output: 4-20mA or 0-10Vdc

*Zero & Span adjustment

*Temperature compensation ensure long lasting reliability

*Custom cable lengths

*Application:

1.Well monitoring

2.Level control

3.Pump control

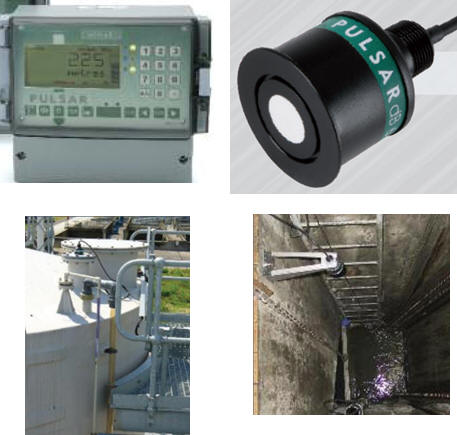

*Ultrasonic Level meter

*Range: 0-50m

*Accuracy: 0.25%

*Solids or liquids level measurement

*Wall, panel, rack mount controllers

*RS232 standard with optional 485 Modbus and Profibus

*AC or DC supply

*Up to 1000m separation

*Ultra Wizard easy set up

*Backlit display

*DATEM Software

*Application: Level, Volume, Pump control, Differential and Open Channel Flow measurement

*DATEM Software:

ØSuperb echo discrimination

ØIdentifies & Locks onto the true echo

ØIgnores interference from other signals

ØEven an obstruction inside the ‘beam angle’

ØNo matter what competing echoes in the vessel

ØAllows ‘cloning of units’

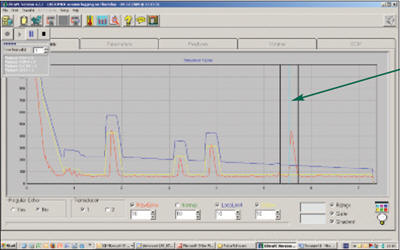

ØReal time recording of echo trace

ØStores all calibrated parameters by site

ØClean effective and accurate storage

ØCD with USB port or serial connection leads

ØEasy to operate and setup

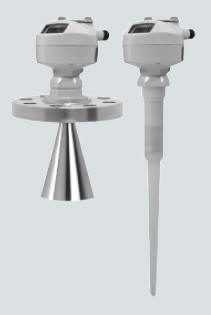

*Radar Level meter

*Range: 0-50m

*Output signal: 4-20mA

*Communication: HART / Profibus

*Process Intelligence – advanced echo processing for unparalleled performance

*Graphical user interface (LUI)

*Quick start wizard and display diagnostics

*Reliable and accurate – high signal to noise ratio

*Easy to install – small horn and narrow beam angle allows installation practically anywhere on your vessel

*Short blanking distance: up to 50mm from the end of the horn

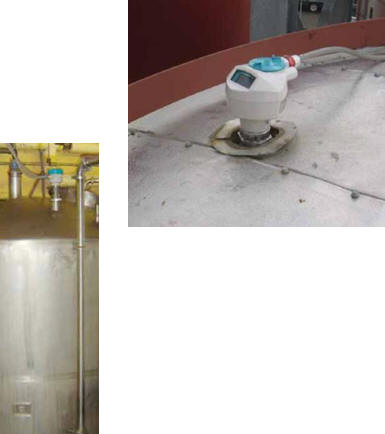

*Application:

1.Anaerobic digesters

2.Manhole

3.Wetwell sump

4.Vessel

5.Storage tank
